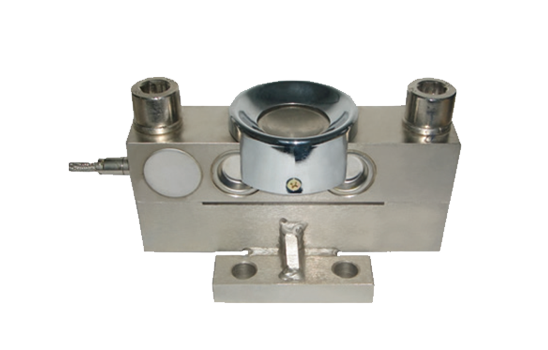

DESKRIPSI Load Cell Timbangan Digital MKCells MK-LUD-P
FEATURES : MKCELLS MK-LUD-P DIGITAL LOAD CELL | |
| Built in lightening protection | High precision, reliability and super stability |
| Design of stainless steel ball, cup has super functions in self-restoring corner pre-adjustment | Anti-wallop and anti side force |
| Easy to installation good interchangeability | PVC Anti rats cable protection, high temperature |
| Application to truck scale, railway scale hopper scale and other weighing equipment | MK-LU-D-U is compatible for MK-Di01-U, MK-Di01-P indicator |
SPECIFICATIONS : MKCELLS MK-LUD-P DIGITAL LOAD CELL | |||
| Rated capacities | 30t | Temperature effect sensitivity | ±0.02%F.S/10°C |
| Rated Output | 30000 | Temperature, operating | -30°C ~ +70°C |
| Combine error | ±0.02%F.S | Maximum safe overload | 150%F.S |
| Creep (30 min) | ±0.02%F.S | Excitation, recommended | 9-12V DC |
| Zero balance | ±0.1%F.S | Excitation, maximum | 20V DC |
| Communication Baud Rate | 9600 BPS | Protection class | IP 68 |
| Insulation resistance | ≥ 2000 MΩ | Digital refurbishing | Frequency : 15 |
| TC SPAN | ±0.02%F.S/10°C | Material | Alloy steel |
